![Etching Center V200](imgs/preview_etch1.jpg) |

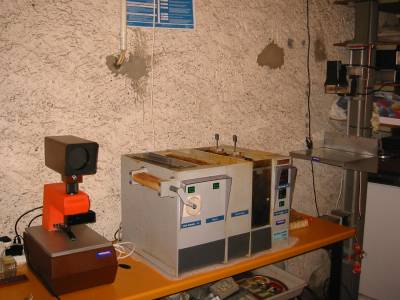

A first look onto the etching center. On the left there's the PreciDrill PCB drill which makes drilling holes into PCBs a lot easier. In the middle there's the actual etching center the PCBs are developed and etched in. On the right there's the exposure unit which is mounted on a column. It was built by Swisscom and is able to expose PCBs in only a few minutes thanks to the four 1000W lights.
|
![It verks!](imgs/preview_etch2.jpg) |

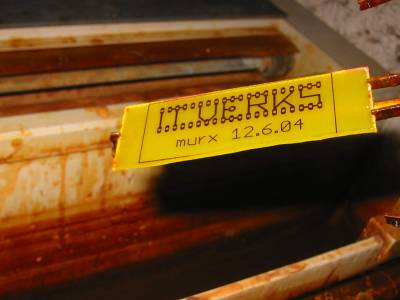

The first testing PCB. Exposing and etching worked flawlessly and took only a few minutes. |
